Range: 0.00~20.00ppm, 0.00~20.00mg/L, 0~200% Air Saturation

Typical response limit: >25mg/L

Accuracy: ±0.1mg/L, ±0.1ppm, ±1%

Respond Time: T90<16 seconds, oxygen increasing

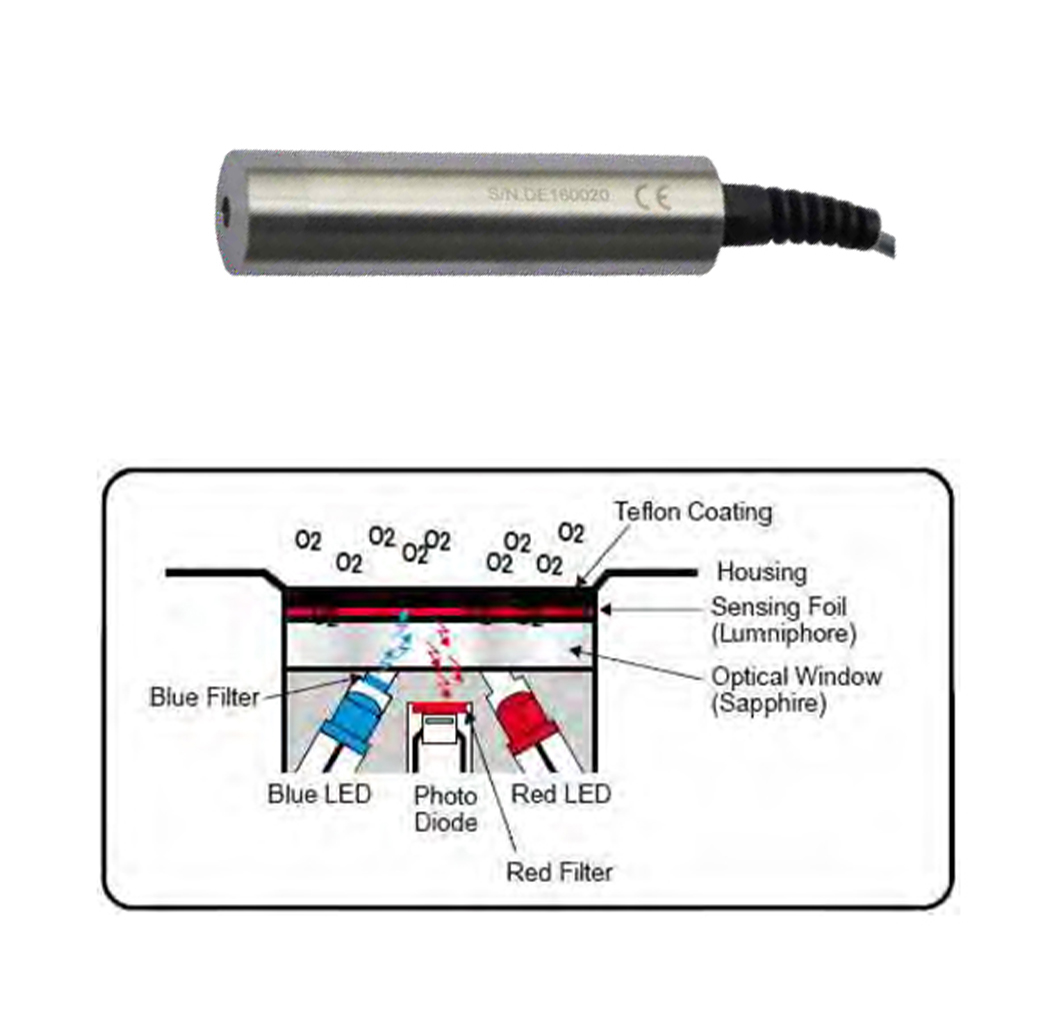

Technology: Fluorophor impregnated membrane optical sensor, dynamic luminescence quenching technique

Calibration: 1 or 2 point, typical calibration duration 12 months

Operate Temp: 32~122°F (0~50°C)

Store Temp: 14~140°F (-10~60°C)

Protection: Immersible, >Ip68

Pressure: 5bar

Sensor Material: 316L, Titanium optional

Digital Interface: Modbus RTU

Power: 24VDC (18-36VDC)

Dimension: Dia. 1.42”, & 8.27” length (Ø 36 mm x 210 mm)

Weight: 2.2 lbs. (1 kg) with SS housing and 33ft cable
