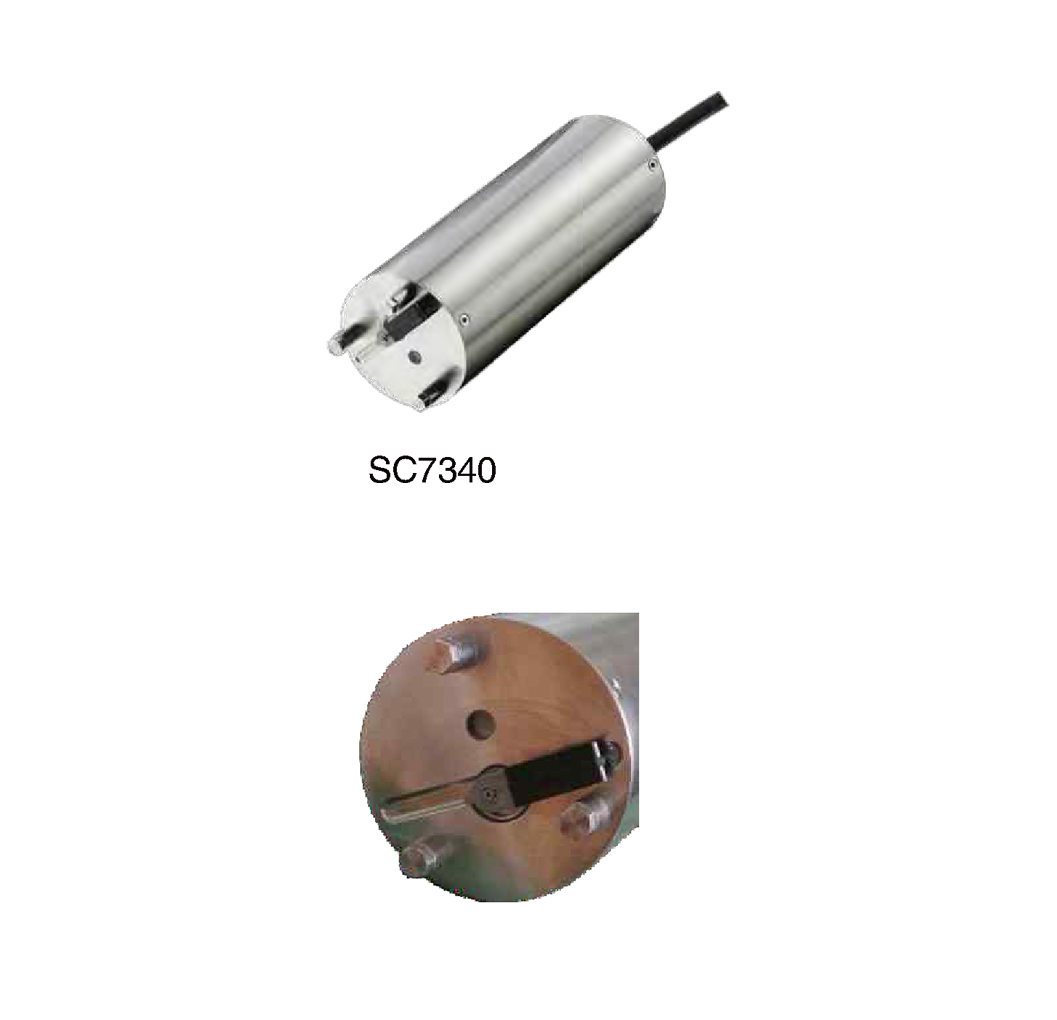

TURBIDITY & SS

Principle: Near infrared LED (880nm) and 90° scattered light method in accordance with ISO 1027/EN 27027

Range: 0 to 500/4000NTU
0.00 to 1250mg/L, 50g/L

Resolution: 0.01 to 1NTU 0.01 to 1mg/L Unit NTU, FTU, ppm, mg/L, g/L

Accuracy: <±1%FS (Turbidity), <±5%FS (SS)

Repeatability: ±2%FS

Operate Temp: 32 to 122 °F (0 to 50°C)

Store Temp: 14 to 140 °F (-10 to 60°C)

Protection: Immersible, >IP68

Pressure: 5bar

Weight: 38.8Oz (1.1kg Sensor with 30’ cable)

Material: 316L, Sapphire Glass (Titanium Body is Optional)

Digital Output: Modbus RTU

Power: 24VDC from GDC

Consumption: At regular operation: 50mA(Max)
At cleaning operation: 240mA(Max)

Auto-Cleaning: Automatic Wiper cleaning system

CE Marking: EN 61326-1:2013 Electromagnetic Compatibility EMC
